22691 (22691S) Harness Socket Mounting
Now we move on to some examples of Jeep and Toyota vehicle mountings.
Mounting the bracket or even using it in any way does not seem to be the norm. Most I see are not even mounted like so:

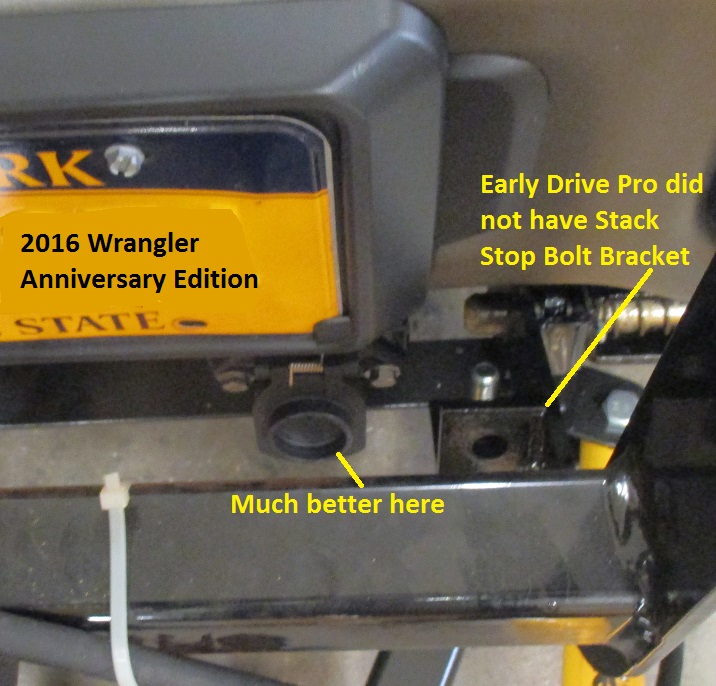

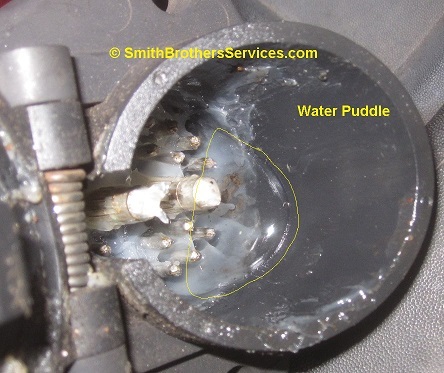

Because the plug was facing up, it was allowing water in, I already dumped the water out before I took the pic. This was an original Drive Pro with no Stack / Stop brackets (see 2016 Wrangler Anniversary Edition pic below). The bumper had to come off of this to move the plug!
|1999 Jeep Cherokee Sport - Custom Meyer Drive Pro 6' 8" install. I only did one.||1999 Jeep Wrangler Rubicon||2007 Jeep Wrangler JK - First year, no Stack Stop brackets.|
|2007 Jeep Wrangler Sahara||2010 Jeep Liberty||2011 Jeep Wrangler Sport|

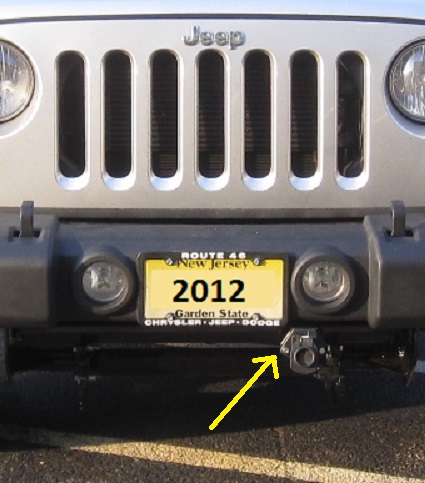

|2012 Jeep Wrangler JK - had to move it over some like the 2007 above.||2013 Jeep Wrangler Moab with aftermarket bumper. Firrst year no S / S Brackets.||2013 Jeep Wrangler Sport|
|2013 Jeep Wrangler Sport||2014 Jeep Wrangler Unlimited Sport||2016 Jeep Wrangler Willys|

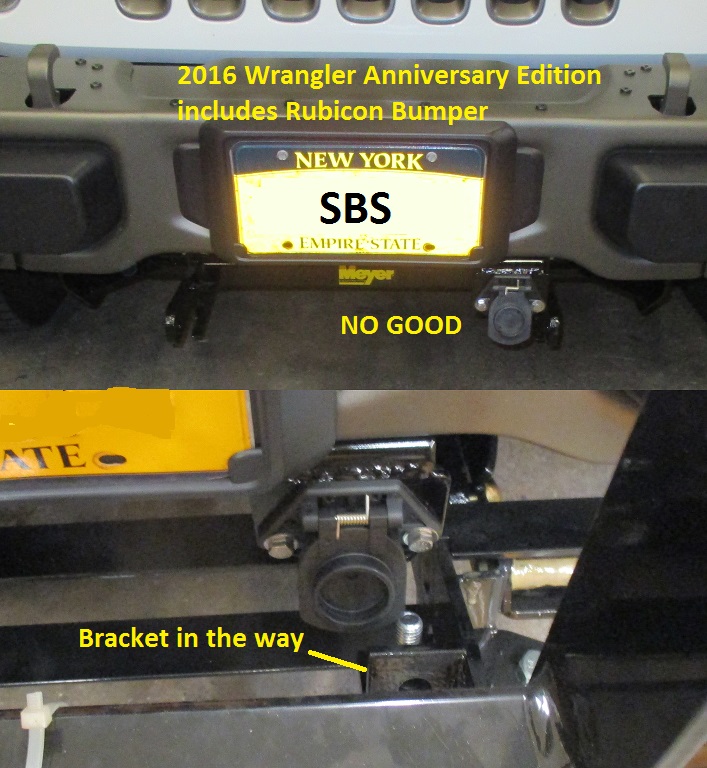

|The 2016 Wrangler Anniversary Edition has the Rubicon Bumper that required notches to be cut out of the plow mount brackets on each side to fit the bumper back on. The Stack Stop Bolt Brackets mean the Socket needs to be further under the license plate to clear.|
|2016 Jeep Wrangler Anniversary Edition||2016 Jeep Wrangler Anniversary Edition|
Stack Stop Bolt Brackets (later Models)
So that eliminates some places the Socket can be mounted on ALL Drive Pro plows.
(Click picture for a larger view in a new window)

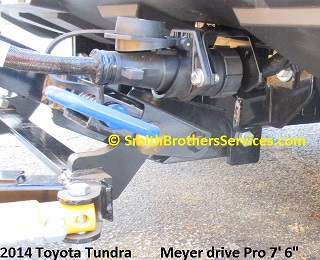

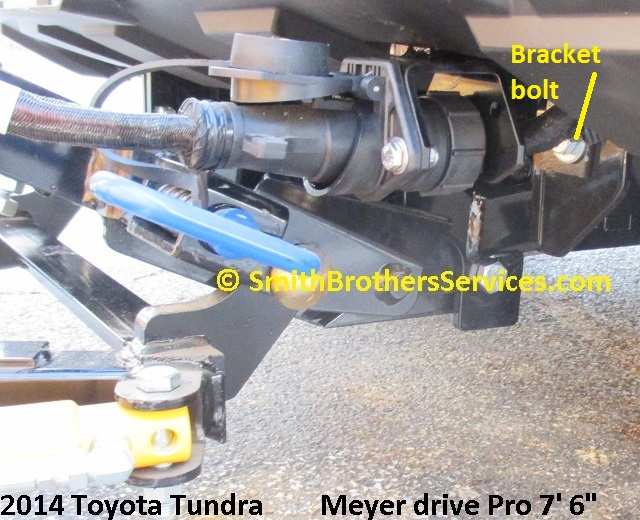

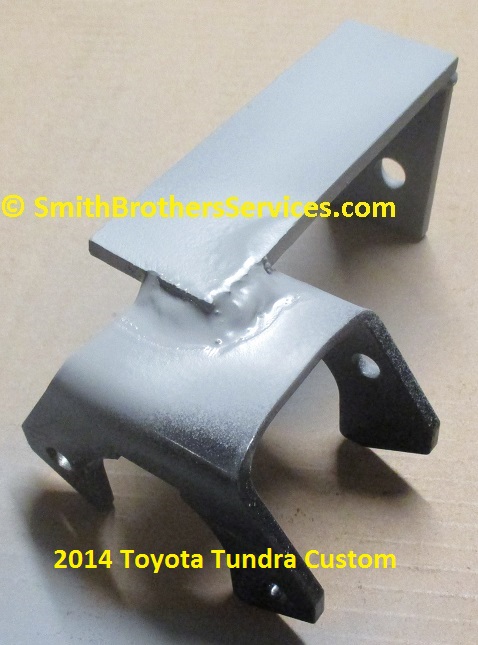

|2014 Toyota Tundra - Custom bracket bolted to plow mount. No holes drilled in truck for mounting.||2014 Toyota Tundra - Custom bracket in primer. Very simple design, works perfectly.|
I have only done 3 Toyota Tundra trucks. Two were almost 10 years ago and I don't recall if the socket was even mounted on them. That was long ago when time was oh so important, before I learned the hard lesson that rushing is a bad thing. For me it means every litttle part of the job that should take x amount of time takes 3 times longer as soon as I give a dealine for completion. It is much less stressful to just do the job correctly the first time, even if it takes twice as long. Keep in mind when I give a price installed, that price is if it takes me 4 hours or 16 hours. I am the one eating it. Shoddy work will not leave this shop, it never has and never will.
(Click on any picture for a larger version in a new window)
|2006 Toyota Tacoma||2009 Toyota Tacoma||2011 Toyota Tacoma|
|2011 Toyota Tacoma - Yes it distorts the grille installing it here, but no cuts.||2012 Toyota Tacoma||2012 Toyota Tacoma|
|Bracket comes with new plow. ONLY use back up plate and bolts from 08202 kit.||Remove license plate bracket. Install harness. Trim Socket as much as possible to try and make it more flat to fit.||2015 Toyota Tacoma. Trimmed Socket tucks behind license plate, can be completely hidden.|
|2016 Toyota Tacoma - This was my last Drive Pro that was not SOS. The customer gave the OK to mount the plug like it is and was very happy with it.|
