2016 Jeep Wrangler JK Meyer Drive Pro Plow Installation Pictures

First is a 2016 Jeep Wrangler Willys Unlimited with Meyer Drive Pro 6' 8" plow..

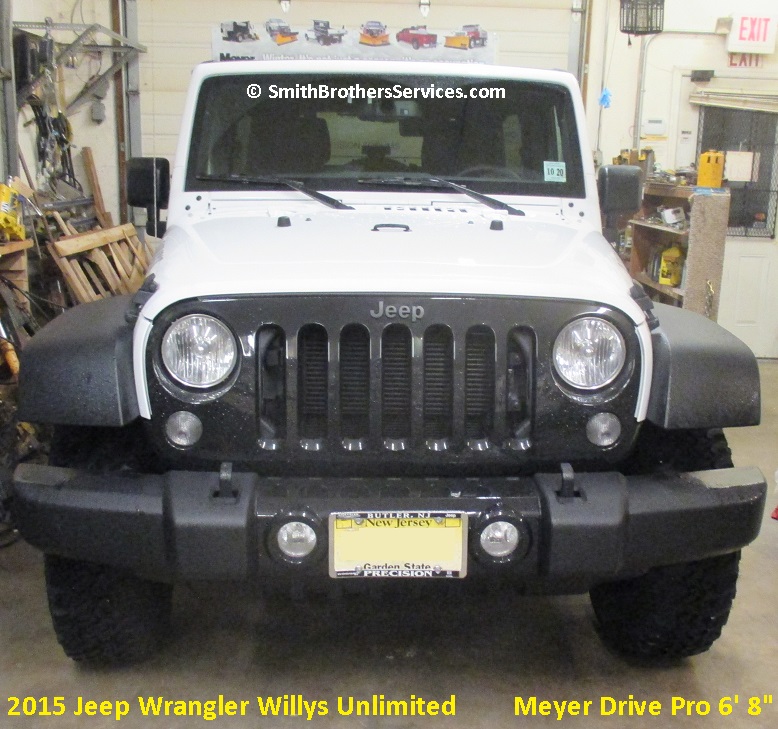

Before





As you can see, the front bumper has to come off to install the mount.

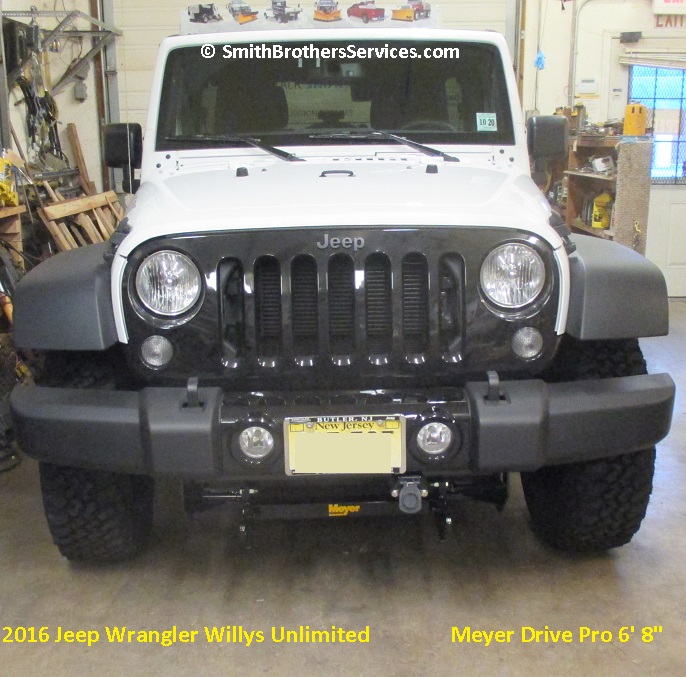

Like magic the mount and wiring are done. The Meyer decal is something we add to the Clevis on all of our Drive Pro installs. Not sure why Meyer does not put one on it, so we do. The 1 piece plug is mounted on the same custom bracket we make for all the Jeep Wrangler JK's we install the Meyer Drive Pro 6' 8" plows on.
We use stainless hardware.



A closer look. It is a very clean install on the Jeep Wrangler JK's.

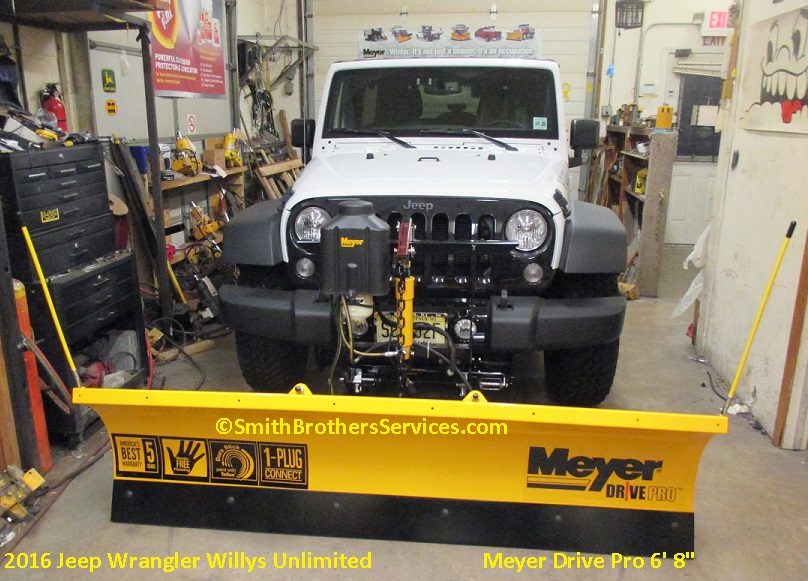

Test fit. All is well. Just need to install the Meyer Nite Saber II plow lights.

_________________________________________________________________________________

2016 Jeep Wrangler 75th Anniversary Edition

This customer drove 2 hours each way to have us install his plow. We did an EZ Plus conversion as well.

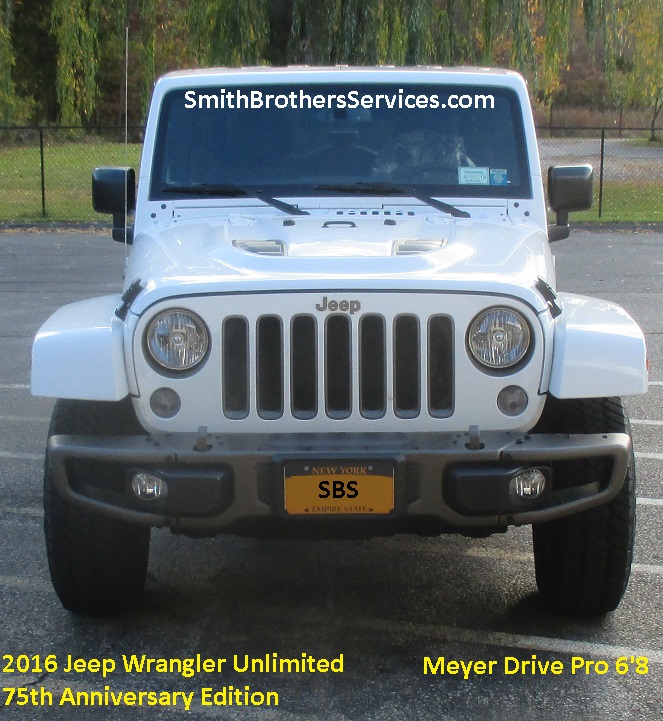

Ready to start.



The bumper has to come off to install the mount.

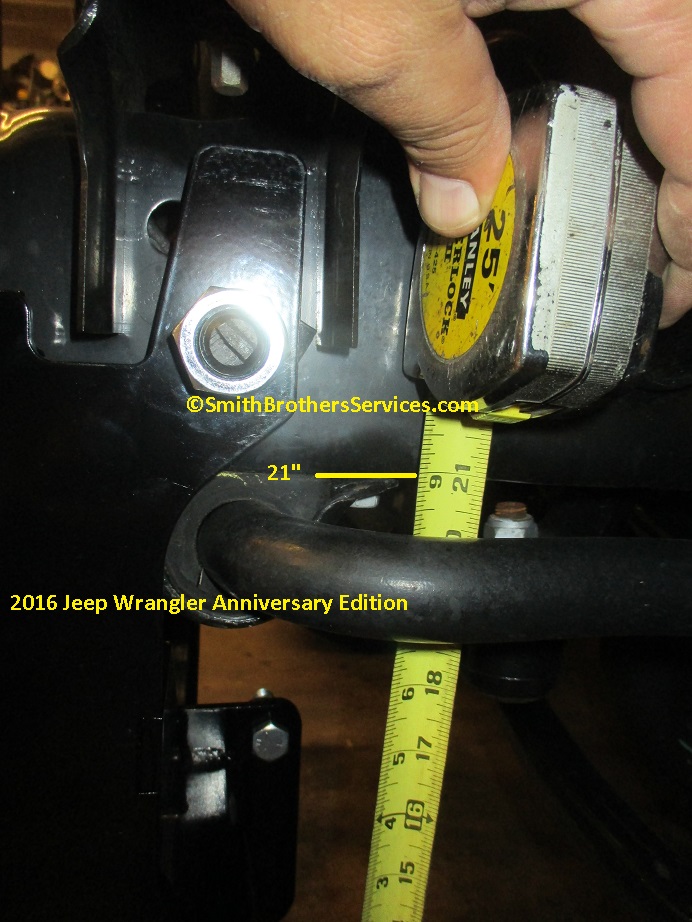

This 2016 Jeep Wrangler JK sits higher than the one above. It is 21" from the bottom of the frame to the ground.

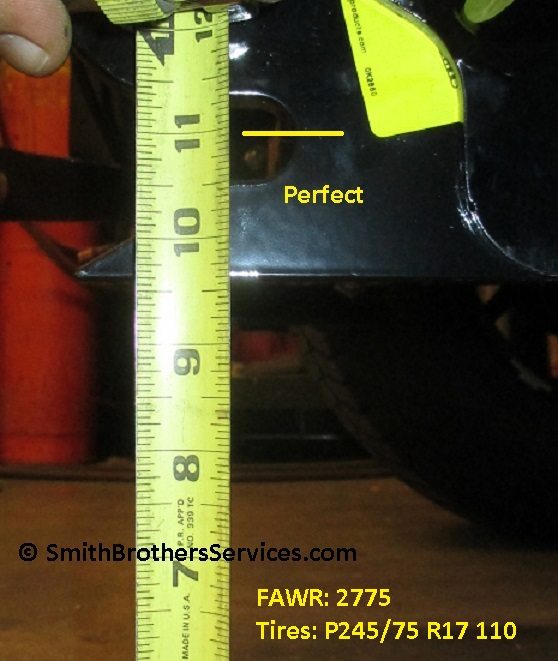

This puts the Clevis at 11" which is PERFECT!

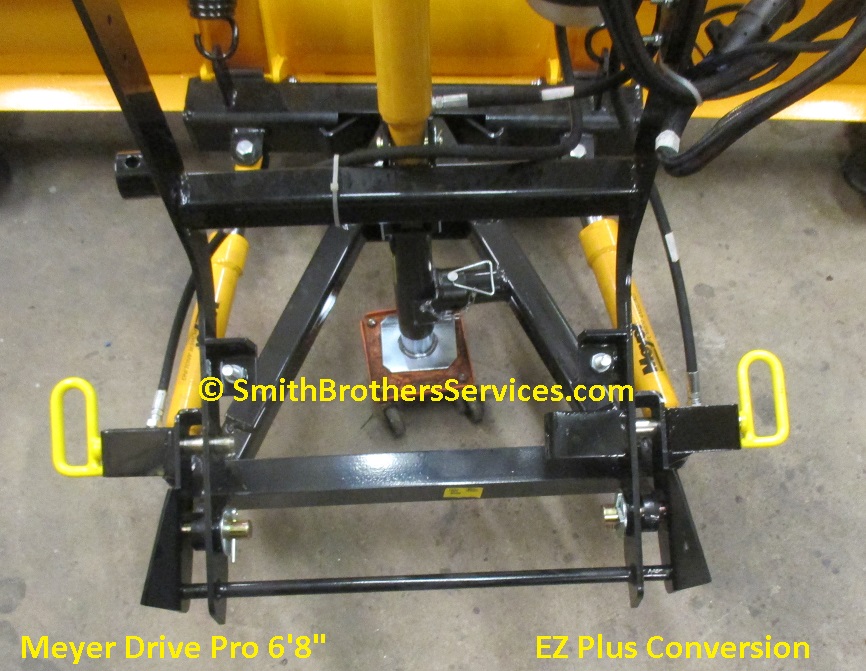

EZ Plus conversion makes mounting SO much easier.

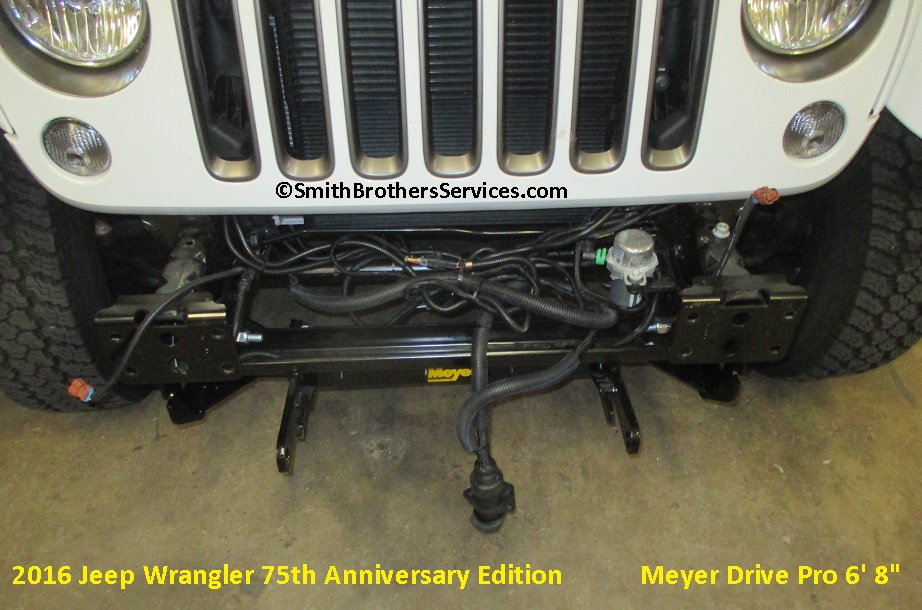

There is A LOT of wire to hide behind the bumper. Notice the plug is hanging down. Once the front bumper is on, there is not enough room to get the plug past the bumper and Clevis to mount the plug.

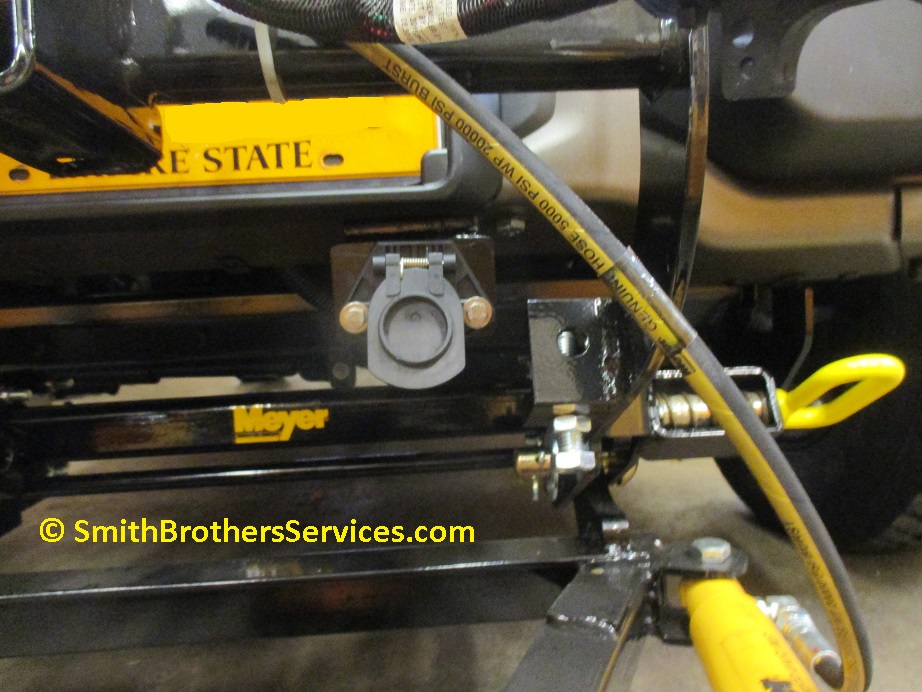

Mount and wiring are done. I had to move the one piece plug with custom bracket and stainless hardware over a little.



Test fit. All set. The customer walked in the door before I could pull it outside and take some pics with the plow on.



Two things that come in VERY handy doing this install are:

Jeep Wrangler JK Bumper Filler Clips (Push Retainers with Phillips heads)
SKU: JKClips
Jeep Wrangler JK Bumper Filler Clips (Push Retainers with Phillips heads)
Jeep Wrangler JK Bumper Filler Panel Retainer Fasteners. Fit 2007 - 2016 Jeep Wrangler JK. Sold in pairs. IF you try to remove these chances are you will have to destroy at least one of them. It is VERY rare that they come right out as you hope they will. Sold in pairs.
$4.00
Fuse Tap for ATM Fuses
SKU: sbsATMtap
Fuse Tap for ATM Fuses
These are GREAT! It makes tapping into your fuse box to supply power to your accessory or auxilliary lights a breeze. Remove the fuse you want to take power from, insert it in the holder, put the (read more)
$6.00

___________________________________________________________________________________________________

Meyer Drive Pro Mounting Carton 2007 & up Jeep Wrangler JK
SKU: M18507
Meyer Drive Pro Mounting Carton 2007 & up Jeep Wrangler JK
Meyer Drive Pro Mounting Carton for 2007 - 2016 Jeep Wrangler. Universal Clevis is NOT INCLUDED.
$348.74 $325.00
Manufacturer: Genuine Meyer
Meyer Drive Pro Universal Clevis 19836
SKU: M19836
Meyer Drive Pro Universal Clevis 19836
Meyer Drive Pro Universal Clevis ONLY. For mounting Drive Pro Single Handle Pull plows. It is not included in Meyer Mounting Cartons and must be purchased separately.
$185.00
Manufacturer: Genuine Meyer

___________________________________________________________________________________________________



  Jeep Wrangler Meyer Plow Main Page

NEW - May 2017 - LIFTED Jeep Wrangler TJ Meyer Drive Pro 6' 8" Plow Installs Page

Main Meyer Plow Installs Page

Toyota Tacoma Plow Installs Page



Here are some Upgrades for all you Meyer Drive Pro 6'8" owners:

Since the pump is attached with pins, it allows a lot of movement. replace the pins with bolts.
Pump Mounting Bolt Kit -

Meyer Plow Pump Mounting Bolt Kit

SKU: SB-PM-BK

Meyer Plow Pump Mounting Bolt Kit

Mounting Bolt kit for EZ Custom, and EZ Classic Mountings, fits E-47, E-57, and E-60 with pictured Lift Arm. Also fits Meyer Drive Pro 6'8". LIFT ARM NOT INCLUDED.

$9.70

Manufacturer: Aftermarket


The King Bolt that is standard on the Drive Pro 6'8" is just a grade 8 Bolt. Replace it with a greaseable Grade 8.
King Bolt with grease Fitting -

Meyer TM Series King Bolt With Grease Fitting - also fits Drive Pro 6'8"

SKU: M13591

Meyer TM Series King Bolt With Grease Fitting - also fits Drive Pro 6'8"

Grade 8 King Bolt with Grease Fitting for Meyer TM Series Plows. Also fits Meyer Drive Pro 6'8" upgrading from the standard King Bolt with NO grease Fitting.

$32.25

Manufacturer: Genuine Meyer



The Pivot Pins can be replaced with Pivot Bolts that also are greaseable.
Pivot Bolt with Grease Fitting -

Meyer TM Pivot Bolt with grease fitting- Also fits Drive Pro 6'8"

SKU: M13753

Meyer TM Pivot Bolt with grease fitting- Also fits Drive Pro 6'8"

Pivot Bolt with Grease Fitting for TM series plows. Sold EACH. Also fits Meyer Drive Pro 6'8" (which would be an upgrade from the standard Drive Pro pin). This is NOT the Center Pivot Bolt (King Bolt).

$28.25 ea. (there are 2 on the plow)

Manufacturer: Genuine Meyer
